If you’ve ever grabbed a buddy’s arrows in hunting camp or needed to transition between seasons quickly, you know the frustration of impact point shifts when changing shaft diameters… but there’s a simpler approach that gets you field-ready in minutes.
Two decades of competitive shooting and hunting have helped me refine a tactical shortcut for switching between arrow diameters. Today, I’m sharing the field-tested method that’ll get you back on target with minimal adjustment, focusing on rest positioning to compensate for diameter differences rather than rebuilding your setup from scratch.
Why Arrow Diameter Changes Your Impact Point
The physics behind this issue is straightforward but often overlooked.
When your bow is tuned for a specific arrow diameter, the rest positions that shaft at precisely 90 degrees to your riser and string. Your sight pins are calibrated to this exact position.
When you switch to a smaller diameter shaft using the same rest setting, that arrow sits deeper into the launcher. Instead of maintaining that perfect 90-degree angle, the arrow runs “downhill” — the point sits lower than the nock.
This angular difference changes your impact point even if the arrow is the same weight as the other diameter it was properly adjusted for, typically driving arrows low and potentially affecting left/right positioning.
The reverse happens when switching from small to large diameter — the bigger shaft rides higher on the rest, creating an uphill angle and higher impact. Either scenario throws off your meticulously tuned setup… unless you make a quick adjustment.
Field-Proven Method for Fast Diameter Transitions
This four-step process leverages micro-adjust rests to reset your arrow position without overhauling your tuning sequence.
Step 1: Establish Your Baseline
Start with your currently tuned setup — in my case, a large 23-diameter indoor arrow. Pick a distance you can shoot confidently (20–30 yards is ideal), and verify your impact point is centered. This creates your reference point for adjustment.
Don’t overthink this step. A single well-executed shot at a distinct aiming point establishes your baseline. For consistency, find flat ground and choose a calm day without crosswinds that could mask the true impact shift.
Step 2: Identify the Position Difference

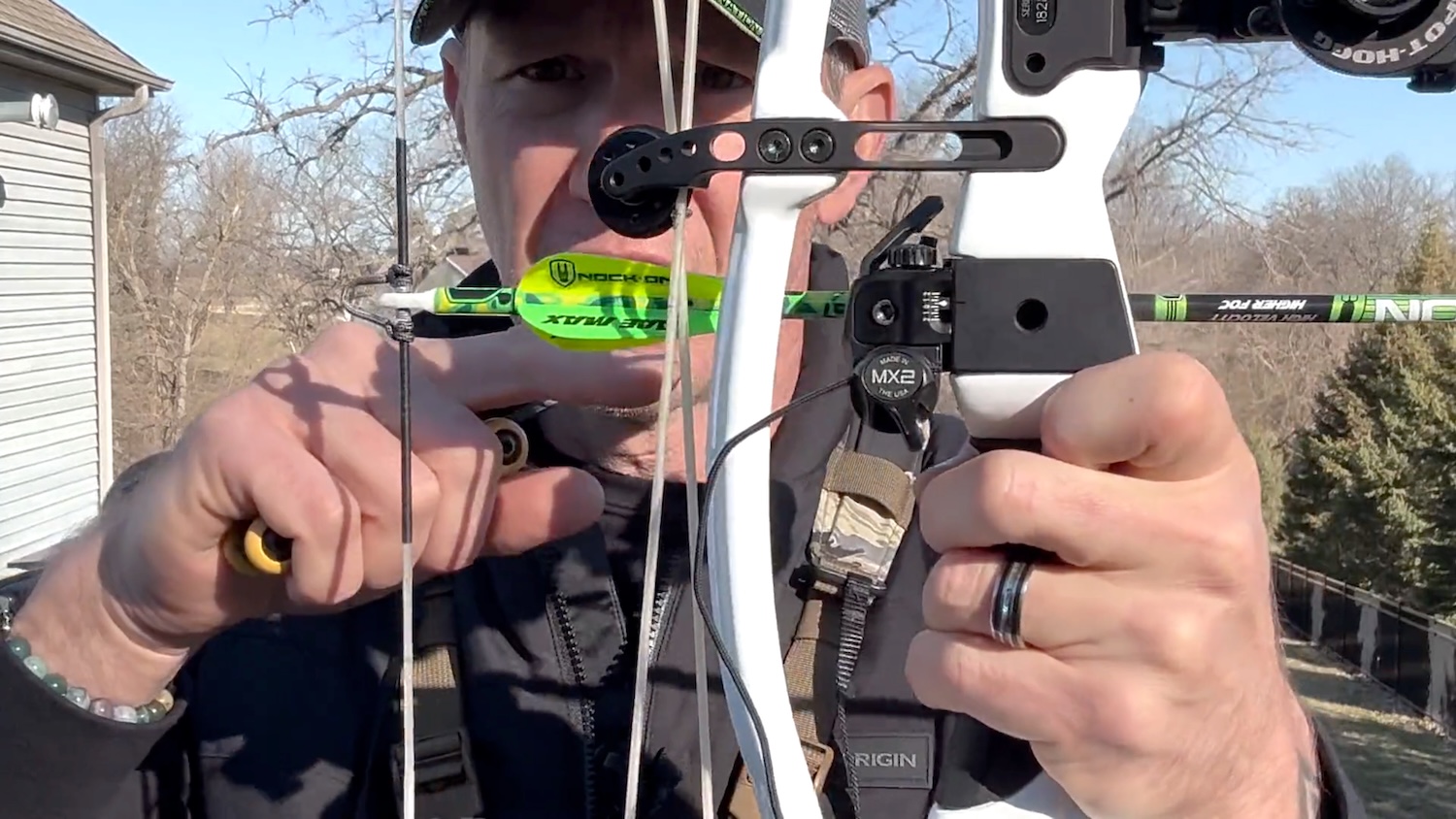

Without adjusting your sight, nock your new diameter arrow and observe how it sits on the rest. With smaller diameter arrows like the Sonic KE, you’ll immediately notice the shaft sitting deeper on the launcher, creating that downhill angle.
This visual assessment tells you which direction to adjust — for smaller arrows, you’ll need to raise the rest; for larger diameters, lower it.
Step 3: Make Micro-Adjustments to the Rest
Here’s where high-quality equipment pays dividends. A micro-adjust rest with precise click adjustments allows for controlled, incremental changes:
- Loosen the vertical adjustment lock screw.
- Rotate the micro-adjust dial upward (for smaller arrows) or downward (for larger arrows) and try to get the point back to 90 degrees.
- Retighten the lock screw before testing.
The goal isn’t just to guess the perfect position but to make systematic, measurable adjustments you can replicate and refine.
Step 4: Verify and Fine-Tune
After each adjustment, shoot your new arrow at the same aiming point used for your baseline. Compare impact points and continue making micro-adjustments until your vertical impact matches the original arrow.
Notice I said vertical impact — don’t chase horizontal differences yet. A slight horizontal variance often indicates spine compatibility differences that may be beneficial. In my testing, the smaller Sonic KE impacted slightly right of my indoor arrow setup, signaling a better spine match to my setup.
This rightward impact actually suggests I can bring my sight closer over the top of my arrow shaft later on, improving my sight picture without sacrificing accuracy — a hidden benefit of this diameter transition.
When This Technique Saves Your Hunt
This approach isn’t just for seasonal transitions — it’s tactical insurance for field situations:
- When your arrows are damaged in travel and you need to borrow a different diameter shaft from a buddy there on the trip
- When switching from heavy game arrows to lighter 3D practice arrows at camp
- When testing different diameter options without resetting your entire bow
The method works best at closer ranges (under 40 yards) as it primarily addresses the initial launch angle. At extended distances, arrow weight differences affect trajectory more significantly, requiring additional sight adjustments.
Remember that while this gets you on target quickly, it doesn’t replace proper paper tuning or bare shaft testing for ultimate precision. It’s just a field-ready technique that maintains functional accuracy when time constraints or circumstances don’t allow full retuning.
Get Back to Shooting Faster
This rest-adjustment technique turns what could be hours of retuning into a five-minute process that gets you back to productive practice. The ability to quickly transition between arrow diameters leads to more flexible training and provides insurance against equipment issues in the field.
Next time you’re making a seasonal switch or need to adapt to a different shaft diameter, start with this rest-adjustment method before tearing down your entire setup. Save comprehensive retuning for when you have time, and keep slinging arrows downrange when you don’t.
